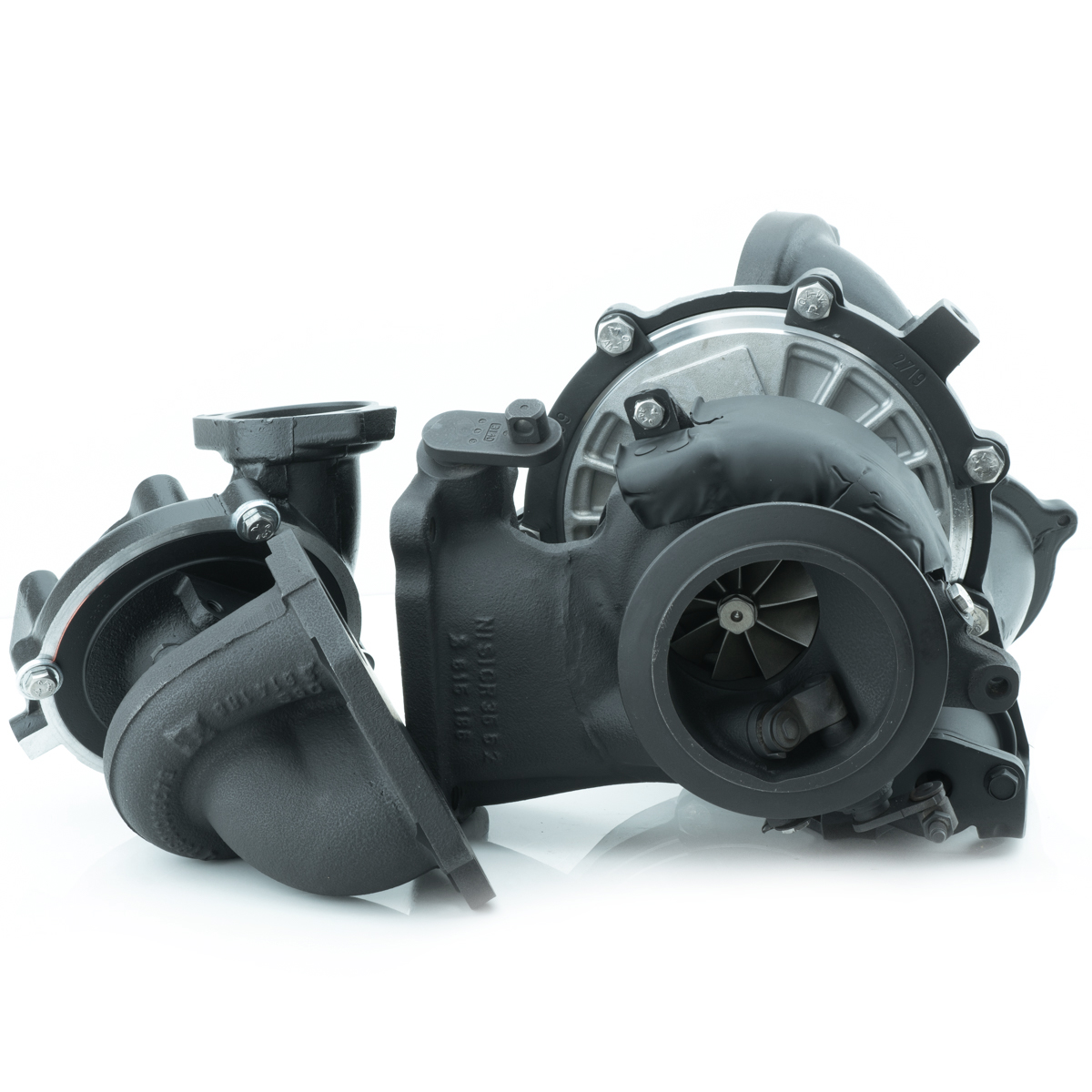

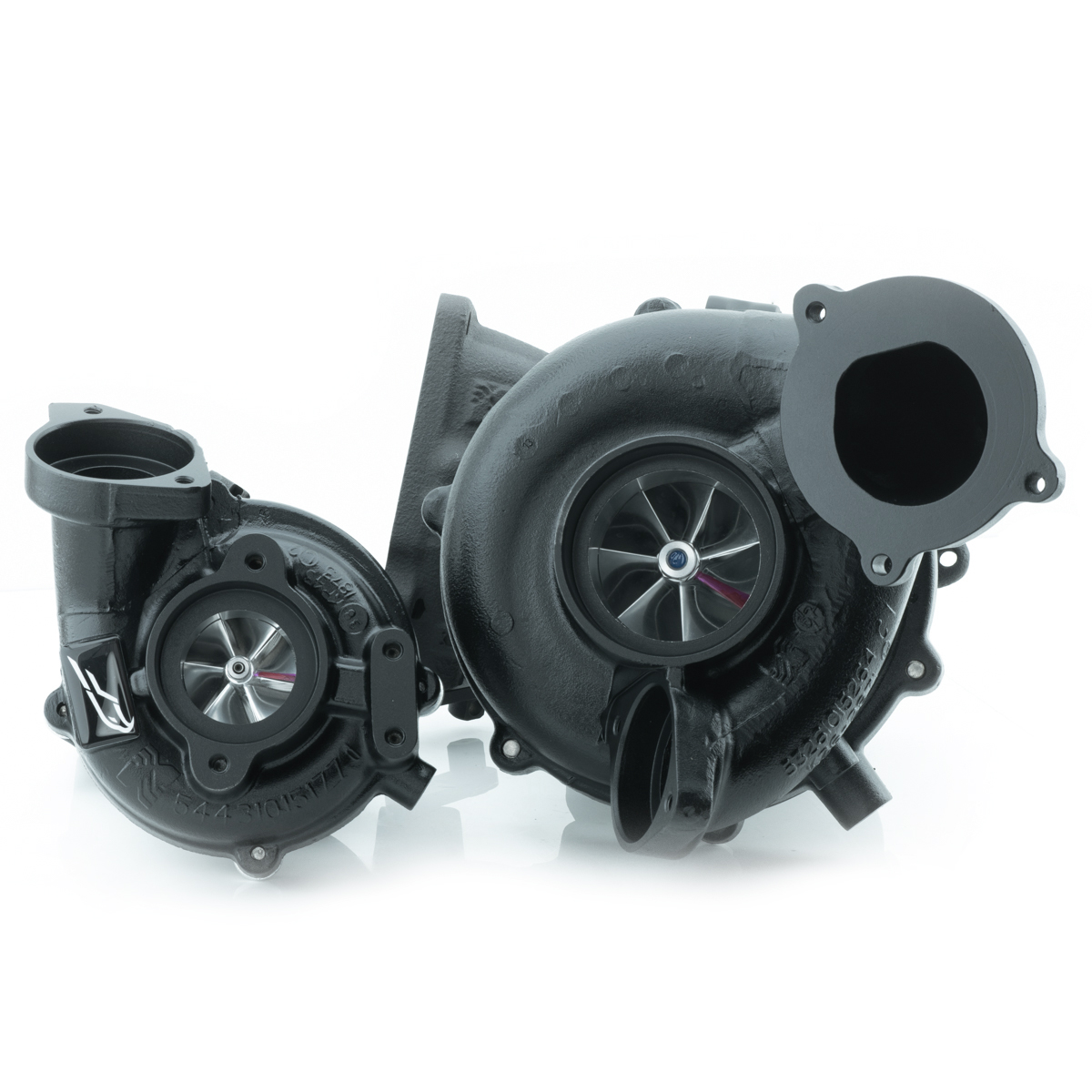

BMW E-series 335D 535D 635D M57D30 Upgrade turbochargers

Plug & Play upgraded turbochargers for BMW E SERIES – 335D 535D 635D / X3,X5 30sd / X6 35dx  M57D30 210kw-285hp engine
Upgrade turbos increase the flow of clean air into the engine which not only boosts the torque, power and responsiveness of acceleration, but also burns fuel more efficiently allowing more MPG and less emissions.

• Larger Lightweight billet compressor wheels with extended tip
• Larger 9 blade high-flow shaft wheel. [Original shaft wheel weight 285g, our larger 9 blade high flow shaft weight 230g.]
• Precisely CNC machined compressor housing & seal plate
• Large-pad stainless steel thrust pad & collar
• 360° bronze thrust bearing
• Step-gap high temperature oil seals
• Balanced on ”Turbo-Technics” VSR400 rig, to a higher than standard 120,000 rpm

To achieve best results and optimal boost, You would need:

•  Bigger, front mount intercooler.
•  EGR delete kit
•  DPF delete or stainless steel exhaust
• R90 or CP4.2 fuel pump conversion
•  STAGE 3 ECU tune
• POWER OUTPUT WITH R90:  485 BHP @ 3.0 BAR , 500+ BHP with Duel pumps

Other essential requirements while fitting STAGE 3 Falcon upgrade turbo:

• New high-quality oil and oil filter.
• Brand new oil feed pipe from dealers.
• Turbocharger fitting kit [provided with this turbo]

All work has to be carried by professional garage or qualified technician.

Fits turbochargers with following numbers:

53269880004
53269880001
53269700004
53269700001

54399880089
54399710089
54399880065
54399700065

10009880013
10009700013

11657811404
11657802587
11657802588
